PulseSequence Class Reference

Pulse sequence class. More...

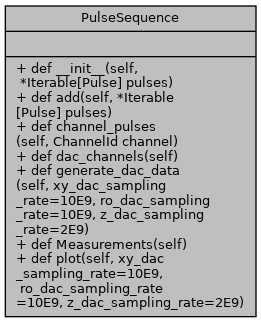

Collaboration diagram for PulseSequence:

Public Member Functions
def	add (self, *Iterable[Pulse] pulses)
	Add pulse(s) to the sequence. More...
def	channel_pulses (self, ChannelId channel)
	Retrieve channel's pulse(s). More...
def	dac_channels (self)
	Retrieve channel id(s). More...
def	generate_dac_data (self, xy_dac_sampling_rate=10E9, ro_dac_sampling_rate=10E9, z_dac_sampling_rate=2E9)
	Generate DAC waveform data. More...
def	Measurements (self)
	Retrieve Measurement object. More...
def	plot (self, xy_dac_sampling_rate=10E9, ro_dac_sampling_rate=10E9, z_dac_sampling_rate=2E9)
	Plots the pulse information for the configured DAC Channels. More...

Detailed Description

PulseSequence object that manages all the waveform data generation process for DACs in the system.

Member Function Documentation

add()

add	(		self,
		*Iterable[Pulse]	pulses
	)

Append additional Pulse object(s).

Parameters

[in]

pulses

Iterable list of Pulse objects

channel_pulses()

channel_pulses	(		self,
		ChannelId	channel
	)

@detail Retrieve all the pulse(s) configured for a given channel.

Parameters

[in]

channel

Channel id.

Returns

List of Pulse

Here is the caller graph for this function:

dac_channels()

dac_channels

(

self

)

Retrieves DAC channel(s) id(s) of which pulse information is configured.

Returns

A set of DAC channel numbers.

Here is the caller graph for this function:

generate_dac_data()

generate_dac_data	(		self,
			xy_dac_sampling_rate = 10E9,
			ro_dac_sampling_rate = 10E9,
			z_dac_sampling_rate = 2E9
	)

Generates waveform data for all DAC(s) with configured pulse(s) .

Parameters

[in]	xy_dac_sampling_rate	Sampling rate (in Hz) for the XY signal DACs.
[in]	ro_dac_sampling_rate	Sampling rate (in Hz) for the RO signal DACs.
[in]	z_dac_sampling_rate	Sampling rate (in Hz) for the Z signal DACs.

Returns

Dictionary containing DAC(s) waveform data.

Here is the call graph for this function:

Measurements()

Measurements

(

self

)

Retrieves a list of Measurement object(s) stored in the object.

Returns

A list of Measurement object(s).

plot()

plot	(		self,
			xy_dac_sampling_rate = 10E9,
			ro_dac_sampling_rate = 10E9,
			z_dac_sampling_rate = 2E9
	)

Plots the pulse information for the configured DAC Channels showing the pulse duration and their start times.

Parameters

[in]	xy_dac_sampling_rate	Sampling rate (in Hz) for the XY signal DACs.
[in]	ro_dac_sampling_rate	Sampling rate (in Hz) for the RO signal DACs.
[in]	z_dac_sampling_rate	Sampling rate (in Hz) for the Z signal DACs.

Here is the call graph for this function:
