PulseGenerator Class Reference

Waveform data generator. More...

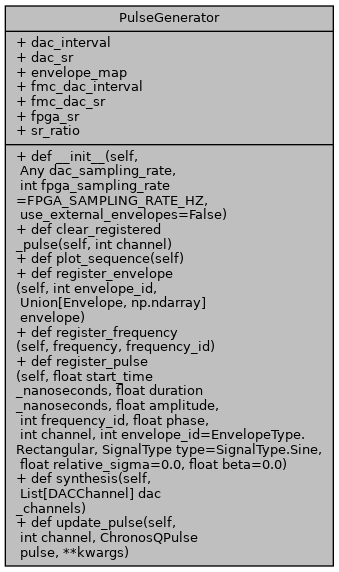

Collaboration diagram for PulseGenerator:

Public Member Functions
def	plot_sequence (self)
	Plots the pulse information for the configured DAC Channels. More...
def	register_envelope (self, int envelope_id, Union[Envelope, np.ndarray] envelope)
	Register a custom envelope for the pulse generator. More...
def	register_frequency (self, frequency, frequency_id)
	Registers the desired frequency for waveform data generation. More...
def	register_pulse (self, float start_time_nanoseconds, float duration_nanoseconds, float amplitude, int frequency_id, float phase, int channel, int envelope_id=EnvelopeType.Rectangular, SignalType type=SignalType.Sine, float relative_sigma=0.0, float beta=0.0)
	Register pulse information for desired DAC Channel. More...
def	synthesis (self, List[DACChannel] dac_channels)
	Generate/synthesize the waveform data. More...
def	update_pulse (self, int channel, ChronosQPulse pulse, **kwargs)
	Update a pulse object configuration. More...

Public Attributes
	dac_interval
	Interval between DAC sampling. More...
	dac_sr
	DAC Sampling rate. More...
	envelope_map
	Envelope types for pulse generation. More...
	fpga_sr
	FPGA sampling rate. More...
	sr_ratio
	Ratio of DAC and FPGA sampling rates. More...

Detailed Description

Implements the functionality to set up and generate waveform data to be uploaded to ChronosQ. The class requires external python packages for its implementation:

• matplotlib
• numpy

Member Function Documentation

plot_sequence()

plot_sequence

(

self

)

Plots the pulse information for the configured DAC Channels showing the pulse duration and their start times.

register_envelope()

register_envelope	(		self,
		int	envelope_id,
		Union[Envelope, np.ndarray]	envelope
	)

Configures and registers a custom pulse envelope type to be used during waveform data generation.

Precondition

This function shall only be called if the PulseGenerator object used is initialized for custom envelope type (i.e. PulseGenerator::init is called with use_external_envelopes = True).

Parameters

[in]	envelope_id	Assigned an ID to the custom envelope.
[in]	envelope	Envelope information in either static.Envelope or numpy's ndarray.

Returns

None

register_frequency()

register_frequency	(		self,
			frequency,
			frequency_id
	)

Registers the given frequency and assigned it an ID.
The ID will be used when generating pulses later when calling PulseGenerator.register_pulse.

Parameters

[in]	frequency	Frequency information in Hz
[in]	frequency_id	Assigned ID to the given frequency

Returns

None

register_pulse()

register_pulse	(		self,
		float	start_time_nanoseconds,
		float	duration_nanoseconds,
		float	amplitude,
		int	frequency_id,
		float	phase,
		int	channel,
		int	envelope_id = EnvelopeType.Rectangular,
		SignalType	type = SignalType.Sine,
		float	relative_sigma = 0.0,
		float	beta = 0.0
	)

Configures and registers the pulse information for the desired DAC channel. The information will be used later to generate the desired waveform data to be uploaded to ChronosQ RFSOC.
This function can be called multiple times to generate complex pulses for a single DAC channel.

Precondition

This function can only be called after:

1. Desired pulse frequency was registered via PulseGenerator.register_frequency .
2. If a custom pulse envelope is to be used, a custom pulse envelope also needs to be registered via PulseGenerator.register_envelope .

Parameters

[in]	start_time_nanoseconds	Start time of the pulse in nanoseconds.
[in]	duration_nanoseconds	Duration of the pulse in nanoseconds.
[in]	amplitude	Amplitude of the pulse in the range of -1 to 1 (inclusive). The value will be remapped automatically to DAC's specifications.
[in]	frequency_id	ID of the frequency to be used for this pulse. This ID shall be a valid ID previously registered via earlier calls to PulseGenerator.register_frequency.
[in]	phase	Phase information (in radians) of the generated waveform.
[in]	channel	DAC Channel ID associated with the registered pulse.
[in]	envelope_id	Envelope type for the generated pulse. Valid envelope types are as defined in static.EnvelopeType or any additional envelope type registered via previous PulseGenerator.register_envelope calls.
[in]	type	Signal type for the pulse as defined below: Value Signal Type static.SignalType.Sine Sine wave (Default) static.SignalType.Square Square wave static.SignalType.DC_Offset DC offset wave
[in]	relative_sigma	(Optional) Relative sigma parameter used to define how the Gaussian pulse is scaled in relative to the pulse duration. This attribute is currently applicable to static.EnvelopeType.Gaussian and static.EnvelopeType.DRAG envelope types.
[in]	beta	(Optional) Used as correction amplitude used to reduce leakage to higher energy states. This attribute is only used for static.EnvelopeType.DRAG envelope type.

See also

static.EnvelopeType and static.SignalType

Returns

None

Here is the call graph for this function:

synthesis()

synthesis	(		self,
		List[DACChannel]	dac_channels
	)

Generates/synthesizes the wave form data from the frequency and pulse configuration information.
This function shall be called once all the DAC channels' pulse configurations are completed.

Precondition

Frequency and pulse configurations shall need to be done for all the desired DAC channels before calling this function (i.e. The functions below):

1. PulseGenerator.register_frequency
2. PulseGenerator.register_pulse
3. PulseGenerator.register_envelope if custom envelope shall be used

Parameters

[in]

dac_channels

A list of DAC channels of type DACChannel

Returns

A dictionary containing generated waveform data and playback end address for the DAC channels with the channel ID as the key.
Eg. {
"6": [<waveform data for channel 6>, <End address info for channel 6>],
"15": [<waveform data for channel 15>, <End address info for channel 15>]
}

update_pulse()

update_pulse	(		self,
		int	channel,
		ChronosQPulse	pulse,
		**	kwargs
	)

Updates the configuration of a previously defined pulse object.

Parameters

[in]	channel	Channel id that the pulse object is associated with.
[in]	pulse	Reference to a pulse object of type static.ChronosQPulse to be updated.
[in]	kwargs	Keyword based arguments of the pulse configuration to be modified. Valid values are: Argument Description start Start time of the pulse in nanoseconds. duration Duration of the pulse in nanoseconds. amplitude Amplitude of the pulse in the range of -1 to 1 (inclusive) frequency_id ID of the frequency previously registered. envelope_id Envelope type for the generated pulse. phase Phase information (in radians) of the generated waveform. signal_type Signal type for the pulse. relative_sigma Sigma parameter for gaussian or DRAG envelope(s) generation beta Beta parameter for DRAG envelope(s) generation

Here is the caller graph for this function:

Member Data Documentation

dac_interval

dac_interval

The interval (in nanoseconds) between DAC sampling process.

dac_sr

dac_sr

The ChronosQ DAC sampling rate in Hz.

envelope_map

envelope_map

Dictionary containing either the supported envelope static.EnvelopeType or custom envelope type.

fpga_sr

fpga_sr

ChronosQ FPGA sampling rate in Hz.

sr_ratio

sr_ratio

The ratio of the DAC and FPGA sampling rates. Used during pulse configuration process.
