T2Ramsey Class Reference

T2Ramsey class. More...

Inherits BaseExperiment.

Collaboration diagram for T2Ramsey:

Public Member Functions
bool	execute (self, list[int] xy_dac, list[int] ro_dac, list[int] ro_adc, list[int] demod, **kwargs)
	Execute experiment. More...
bool	fit (self)
	Data fit. More...
def	plot (self, fit=False, filename=None)
	Plot experiment results. More...

Static Public Member Functions
def	obj (x, *p)
	Model equation. More...

Detailed Description

Object that manages the T2 Ramsey experiment.
Note: Currently this class only support single qubit for the experiment.

Member Function Documentation

execute()

execute	(		self,
		list[int]	xy_dac,
		list[int]	ro_dac,
		list[int]	ro_adc,
		list[int]	demod,
		**	kwargs
	)

Execute the T2 Ramsey experiment.
Note: Currently this class only support single qubit for the experiment.

Parameters

[in]	xy_dac	List of XY DAC channels to be used for the experiment.
[in]	ro_dac	List of readout DAC channels.
[in]	ro_adc	List of readout ADC channels.
[in]	demod	List of qubit/demodulator IDs.
[in]	kwargs	Addtional mandatory keyword based parameters required for the experiment as defined below: Keyword argument Description ro_duration Readout duration (in ns) ro_amplitude Readout amplitude (between -1 to 1 inclusive) ro_frequency Readout frequency (in Hz) qubit_drive_amplitude Qubit drive amplitude (between -1 to 1 inclusive) qubit_frequency Qubit frequency (in Hz) value pi_pulse_duration Pulse duration (in ns) detuning Tuning frequency (in Hz) steps

Here is the call graph for this function:

fit()

fit

(

self

)

Request to cruve fitting to be executed on recent experiment results.

Returns

True if fitting was executed successfully. Else False.

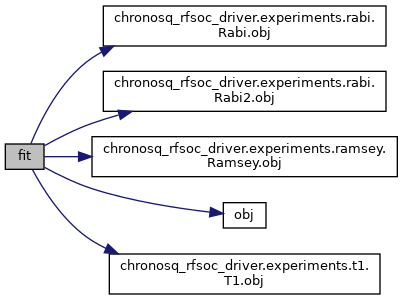

Here is the call graph for this function:

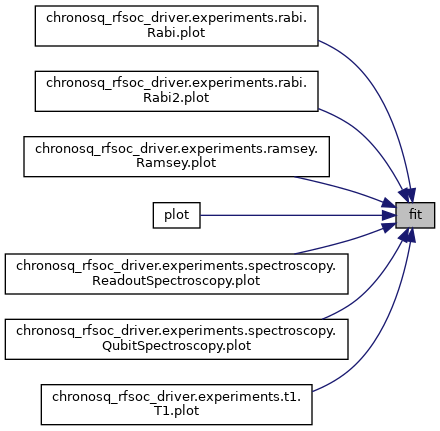

Here is the caller graph for this function:

obj()

obj (   x, *  p  )

static

Model equation used during the curve fitting process on the experiment results.

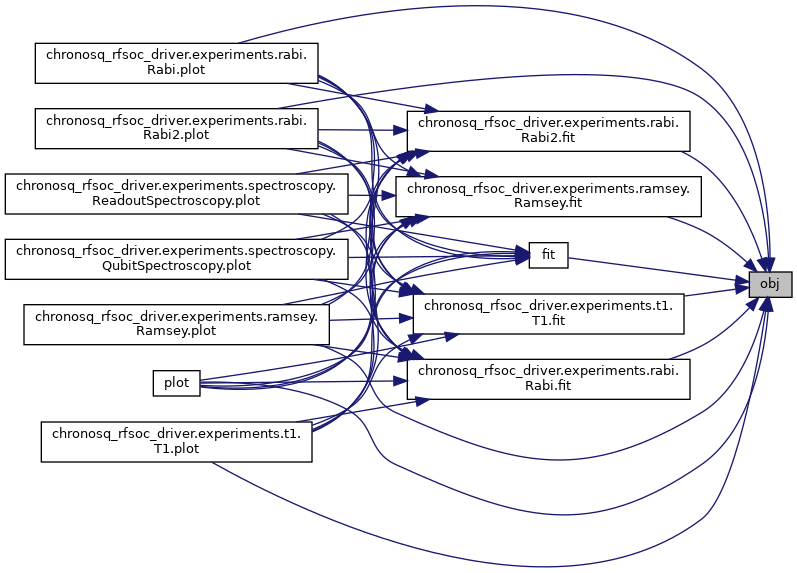

Here is the caller graph for this function:

plot()

plot	(		self,
			fit = False,
			filename = None
	)

Plots the experiment results.
Alternatively the user can also retrieve the experiment results via results and/or results_fit to customize how the data is plotted.

Parameters

fit	Set to True if the results plot includes curve fitting. Default is False. Fitting algorithm used varies by the experiment and fit needs to be called before data is available.
filename	(Optional) When set to a filename, the plot will be automatically saved to file and skips displaying. Warning: If a file with the given filename already exists, it will be overwritten.

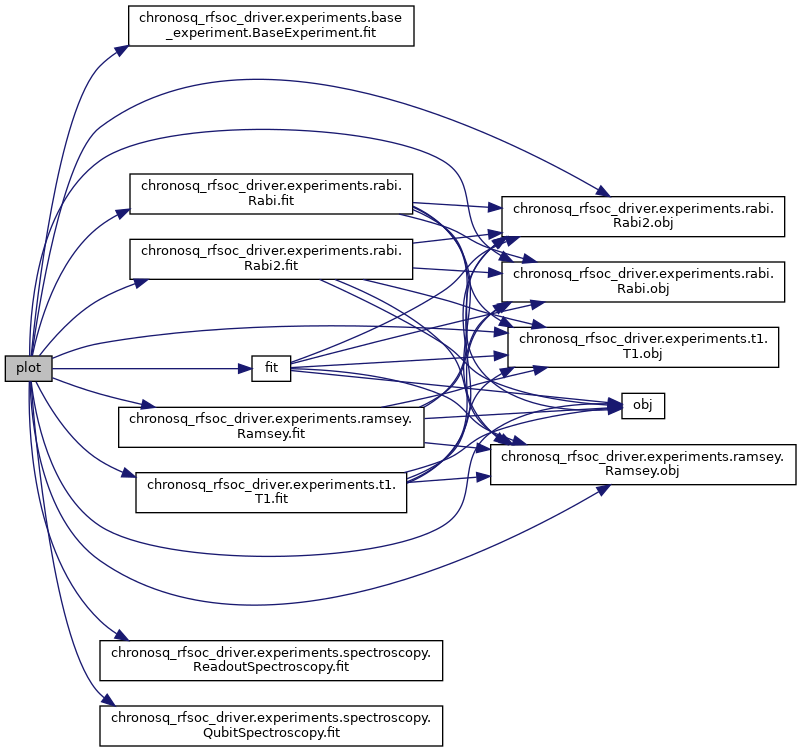

Here is the call graph for this function:
